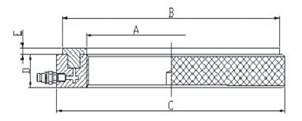

| 型号 | 螺栓规格 |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
行程 (mm) |
面积 (mm²) |
重量 (kg) |
| THN050 | M50X1.5 | 50.5 | 104 | 114 | 38 | 4 | 5 | 2900 | 2.70 |
| THN055 | M55X2 | 55.5 | 109 | 120 | 38 | 4 | 5 | 3150 | 2.75 |
| THN070 | M70X2 | 70.5 | 127 | 135 | 38 | 5 | 5 | 3800 | 3.20 |
| THN075 | M75X2 | 75.5 | 132 | 140 | 38 | 5 | 5 | 4000 | 3.40 |
| THN090 | M90X2 | 90.5 | 147 | 156 | 38 | 5 | 5 | 4700 | 4.00 |
| THN105 | M105X2 | 105.5 | 163 | 172 | 38 | 6 | 5 | 5300 | 4.65 |
| THN120 | M120X2 | 120.5 | 179 | 188 | 38 | 6 | 5 | 6000 | 5.25 |
| THN135 | M135X2 | 135.5 | 195 | 204 | 38 | 6 | 5 | 6600 | 5.90 |
| THN150 | M150X2 | 150.5 | 211 | 220 | 39 | 7 | 5 | 7500 | 6.60 |
| THN165 | M165X3 | 165.5 | 229 | 238 | 40 | 7 | 6 | 8900 | 7.90 |
| THN1190 | M190X3 | 191 | 259 | 270 | 42 | 8 | 7 | 11500 | 10.5 |
| THN210 | Tr210X4 | 212 | 282 | 294 | 44 | 8 | 9 | 13400 | 12.5 |
| THN220 | Tr 225X4 | 227 | 300 | 312 | 45 | 8 | 9 | 15200 | 14.5 |
| THN240 | Tr 240X4 | 242 | 316 | 330 | 46 | 9 | 10 | 16500 | 16.0 |
| THN250 | Tr 250X4 | 252 | 329 | 342 | 46 | 9 | 10 | 17600 | 17.5 |
| THN260 | Tr 260X4 | 262 | 341 | 356 | 47 | 9 | 11 | 18800 | 19.5 |
| THN300 | Tr 300X4 | 302 | 386 | 404 | 51 | 10 | 14 | 23600 | 25.5 |
| THN310 | Tr 310X4 | 312 | 397 | 416 | 52 | 10 | 14 | 24900 | 27.0 |
| THN340 | Tr 340X4 | 342 | 430 | 450 | 54 | 10 | 14 | 28400 | 31.5 |
| THN345 | Tr 345X4 | 347 | 436 | 456 | 54 | 10 | 14 | 29400 | 32.5 |
| THN350 | Tr 350X4 | 352 | 442 | 464 | 56 | 10 | 14 | 29900 | 35.0 |
| THN360 | Tr360 X4 | 362 | 455 | 472 | 56 | 10 | 15 | 31300 | 35.5 |
| THN360 | Tr 365X4 | 367 | 460 | 482 | 57 | 11 | 15 | 31700 | 38.5 |
| THN370 | Tr370 X4 | 372 | 466 | 486 | 57 | 11 | 16 | 32800 | 39.0 |
| THN380 | Tr 380X4 | 382 | 476 | 498 | 58 | 11 | 16 | 33500 | 40.5 |
| THN385 | Tr 385X4 | 387 | 483 | 504 | 58 | 11 | 16 | 34700 | 41.0 |
| THN400 | Tr 400X4 | 402 | 499 | 522 | 60 | 11 | 17 | 36700 | 45.5 |
| THN410 | Tr 410X4 | 412 | 510 | 534 | 61 | 11 | 17 | 38300 | 48.0 |
| THN420 | Tr 420X4 | 422 | 522 | 546 | 61 | 11 | 17 | 40000 | 50.0 |
| THN430 | Tr 430X4 | 432 | 532 | 556 | 62 | 11 | 17 | 40800 | 52.5 |
| THN440 | Tr 440X4 | 442 | 543 | 566 | 62 | 12 | 17 | 42500 | 54.0 |
| THN450 | Tr 450X4 | 452 | 554 | 580 | 64 | 12 | 17 | 44100 | 57.5 |
| THN460 | Tr 460X4 | 462 | 565 | 590 | 64 | 12 | 17 | 45100 | 60.0 |
| THN470 | Tr 470X4 | 472 | 576 | 602 | 65 | 12 | 18 | 46900 | 62.0 |
| THN480 | Tr 480X4 | 482 | 587 | 612 | 65 | 12 | 18 | 48600 | 63.0 |
| THN490 | Tr 490X4 | 492 | 597 | 624 | 66 | 12 | 19 | 49500 | 66.0 |
| THN500 | Tr 500X4 | 502 | 609 | 636 | 67 | 12 | 19 | 51500 | 70.0 |
